1600 Watt Solar Kit

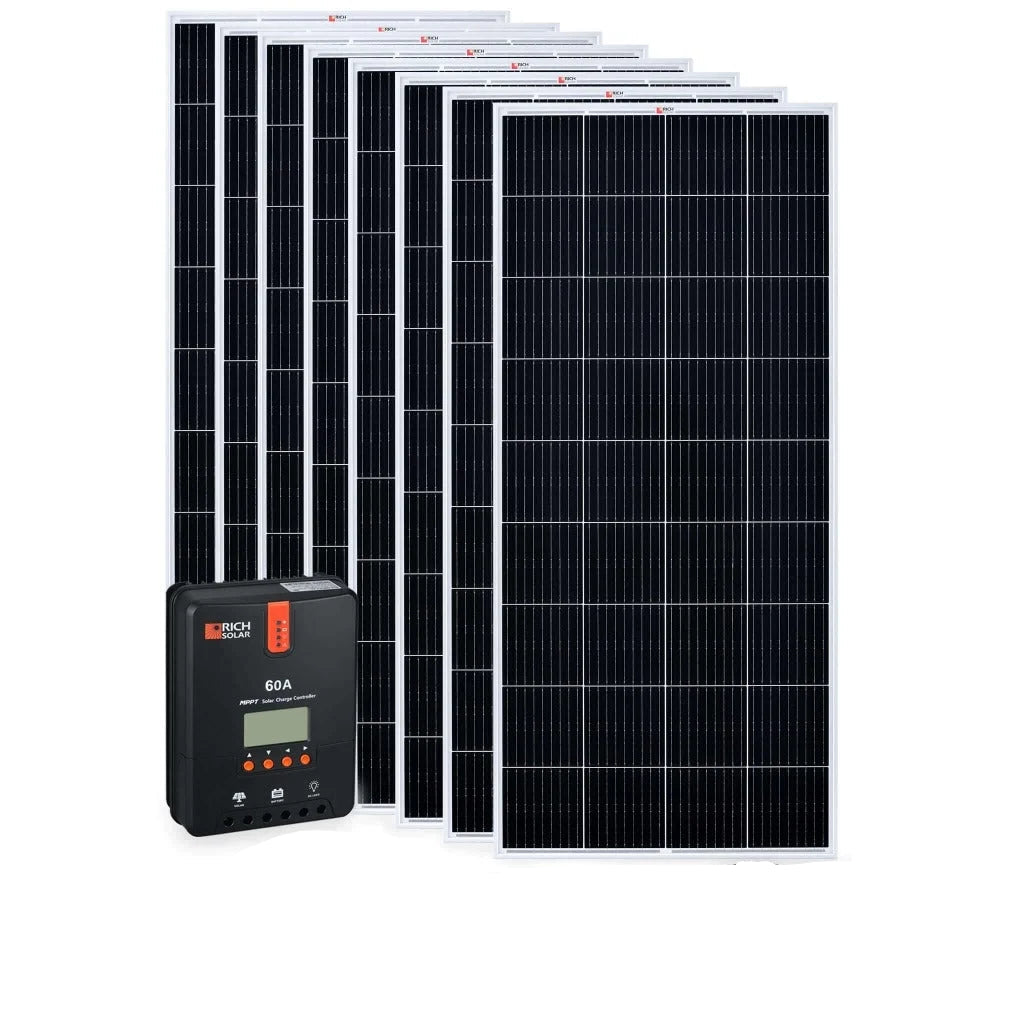

1600 Watt 24V Monocrystalline Solar Kit with 60A MPPT Controller includes eight high-efficiency 200W monocrystalline solar panels and a 60A MPPT charge controller designed for off-grid power applications. Suitable for RVs, boats, trailers, and outdoor setups, this solar kit features pre-assembled wiring for simplified installation, MC4 connections, and durable tempered glass and aluminum panel construction. The included digital MPPT controller provides real-time system monitoring for volts, amps, and amp hours.

Specifications

• System Power: 1600 Watt

• System Voltage: 24V

• Solar Panel Wattage: 200W Each

• Solar Panel Type: Monocrystalline Solar Panel

• Number of Solar Panels: 8

• Maximum Power Voltage (Vmp): 20.4V

• Maximum Power Current (Imp): 9.80A

• Open Circuit Voltage (Voc): 24.3V

• Short Circuit Current (Isc): 10.2A

• Maximum Input Voltage: 24V

• Panel Dimensions: 58.7 x 26.8 x 1.4 in

• Panel Weight: 26.5 lbs

• Coverage Area: 230 sq ft

• Connection Type: MC4

• Controller Type: 60A MPPT Solar Charge Controller

• Material: Tempered Glass, Aluminum, Monocrystalline Silicon

• Color: Black

• Recommended Use: RV

• Model: RS-K1660

Features

• High-Efficiency Solar Panels: Monocrystalline panels with 9 busbars are designed for efficient solar energy collection.

• Anti-Reflective Coating: Panel surface treatment helps maximize light absorption.

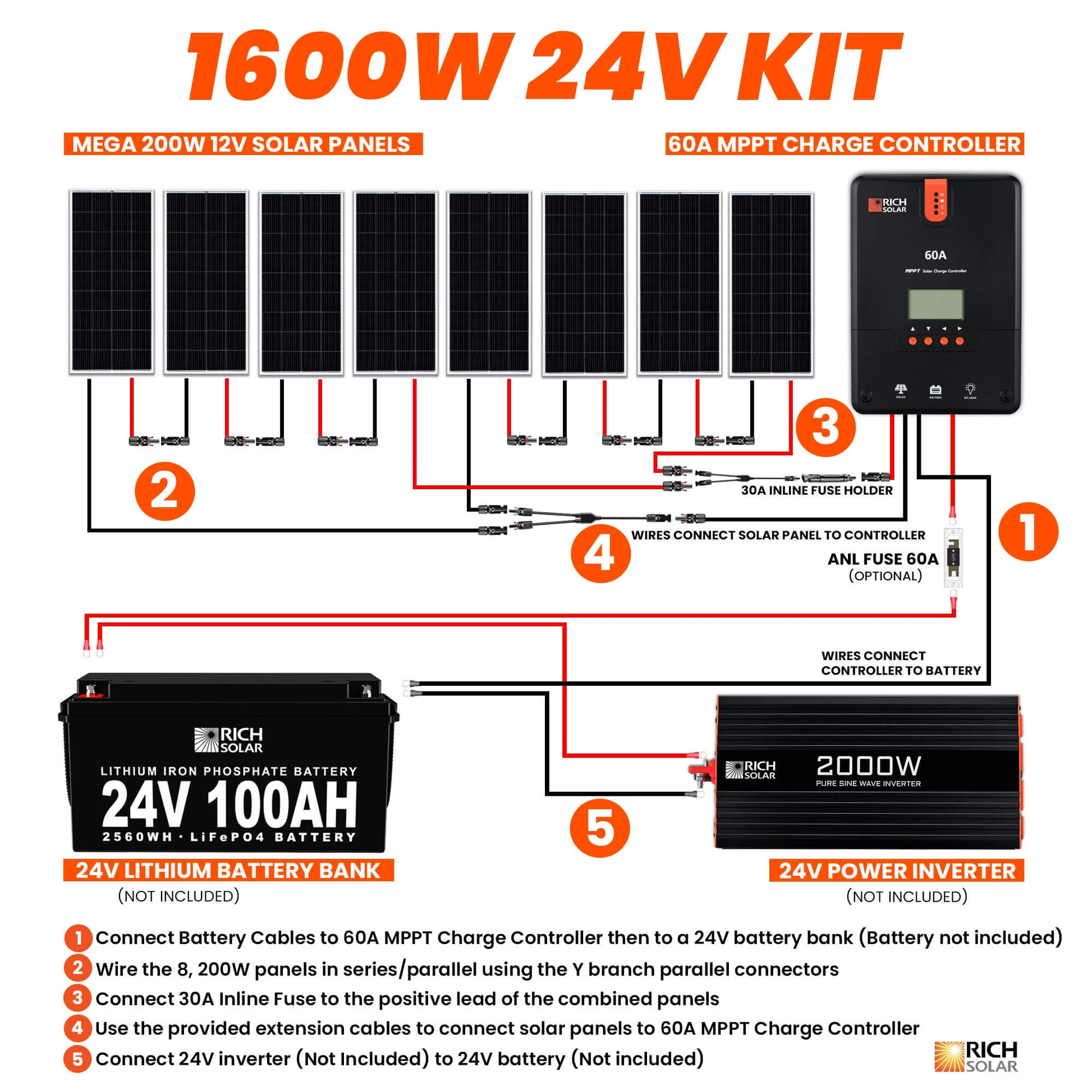

• Simple Installation: Pre-assembled wiring harness allows convenient setup without crimping tools.

• Expandable System: Compatible components allow for future expansions and upgrades.

• Digital MPPT Controller: Displays real-time system updates for volts, amps, and amp hours.

• System Protection: Charge controller is designed to help protect the system from overcharging.

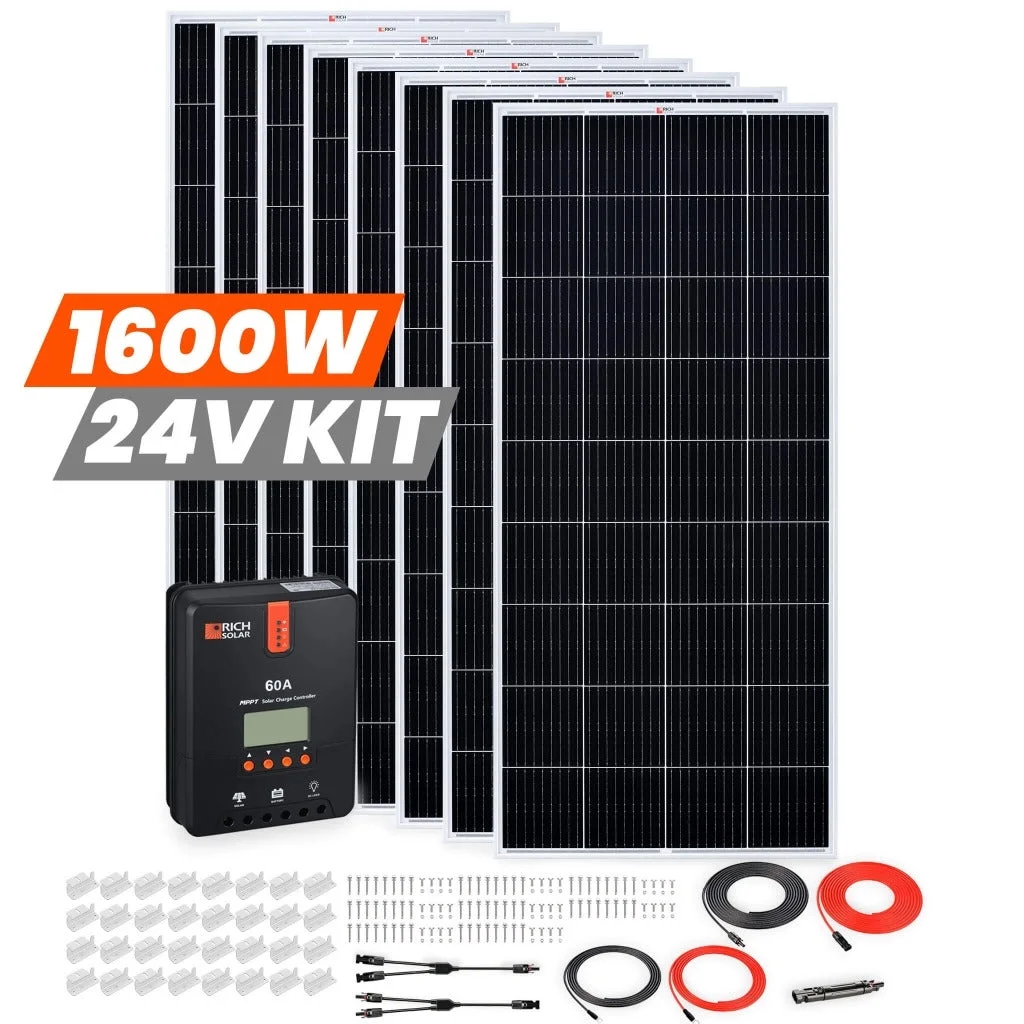

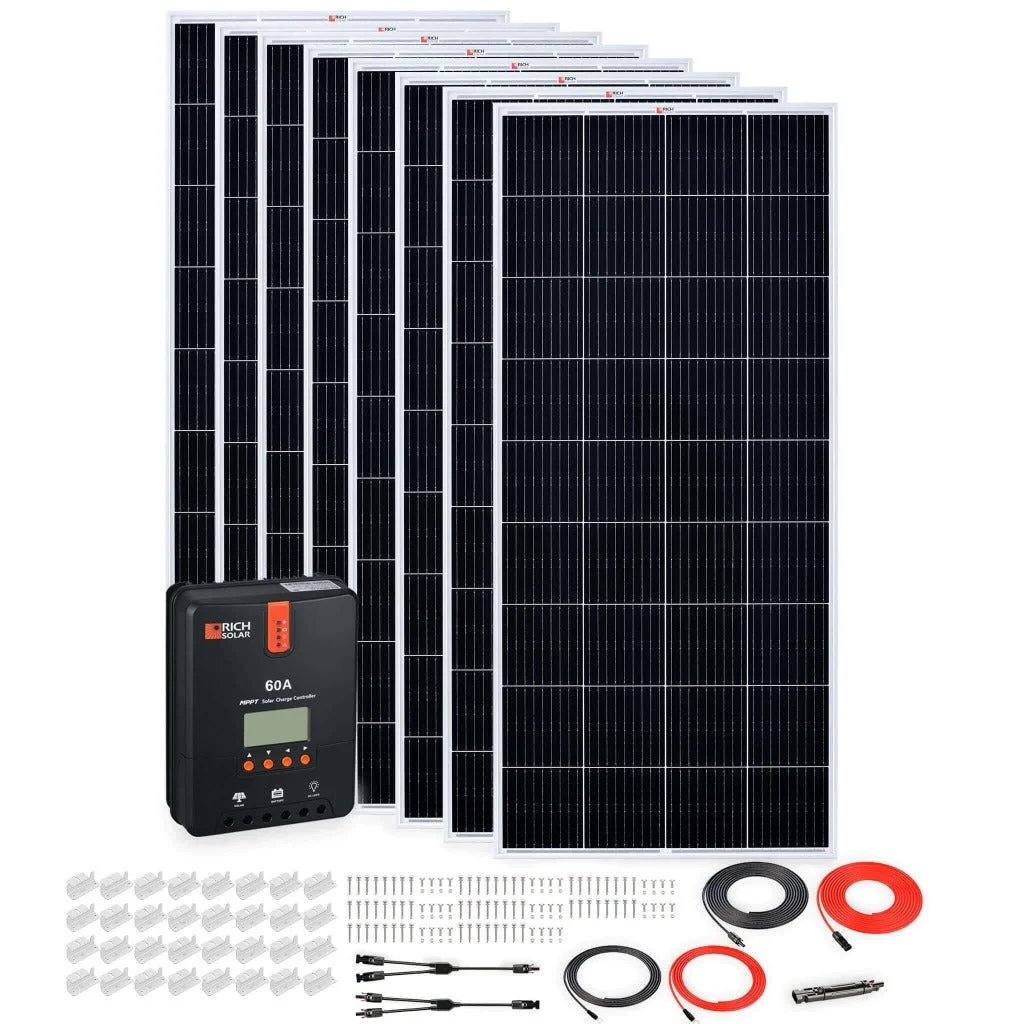

Package Contents

• 8 x 200 Watt Monocrystalline Solar Panels

• 1 x 60A MPPT Solar Charge Controller

• 1 x 20' #10 Gauge Solar Cable (Red)

• 1 x 20' #10 Gauge Solar Cable (Black)

• 1 x 10' #4 Gauge Battery Cable (Red)

• 1 x 10' #4 Gauge Battery Cable (Black)

• 8 x Mounting Z Brackets

• 1 x 30A Inline Fuse Holder with Fuse

• 1 x Y Branch Parallel Adapters

Warranty

• Solar Panel Output Warranty: 25 Years
